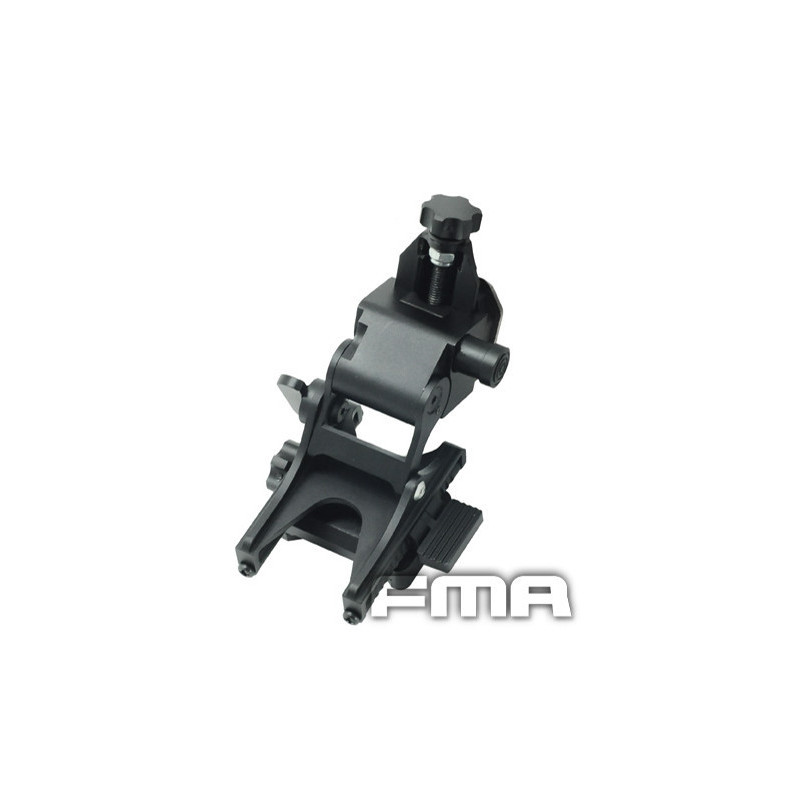

Helmet Mount for NVG PVS 14 / 15 / 18 by FMA

The metal helmet mount for night vision devices by FMA provides a secure and stable attachment, ensuring optimal comfort and unique adjustments to suit the needs of each operator. This mount is compatible with a range of night vision devices, including PVS 15, PVS 18, GPNVG 18. It delivers reliable performance in challenging conditions, providing the necessary durability and flexibility during night operations.

Instructions

A. Attaching the Night Vision Device (NVD-NOD) to the Mount

• Align the NVD-NOD approximately at your eye level.
• Slide the dovetail attachment point on the top of the NVD-NOD into the dovetail on the bottom of the mount until it clicks.

B. Releasing the Night Vision Device from the Mount

• Turn the safety release knob 120 degrees clockwise.
• Pull the NVD-NOD away from the mount to safely release it.

C. Adjusting the Tilt and Height

• Tilt: Adjust the tilt angle of the goggles by turning the lever.
• Height: Adjust the vertical position by turning the knob.

D. Eye Relief

• Press down the lever and slide the mount forward or backward to adjust the eye relief.

Attaching the Mount to the Helmet

• Slide the bottom of the mount into the bottom of the helmet bracket.
• Snap the top of the mount back until it locks into place.

Simple and Secure Detachment

• Press the button at the bottom of the helmet bracket with your thumb.
• Use your fingers to tilt the unit downward and release it from the helmet.

Technical Specifications

• Material: Aluminum and polymer
• Compatibility: PVS 15, PVS 18, GPNVG 18
• Weight: 190 g

Package Contents

• TATM helmet mount for NVG
