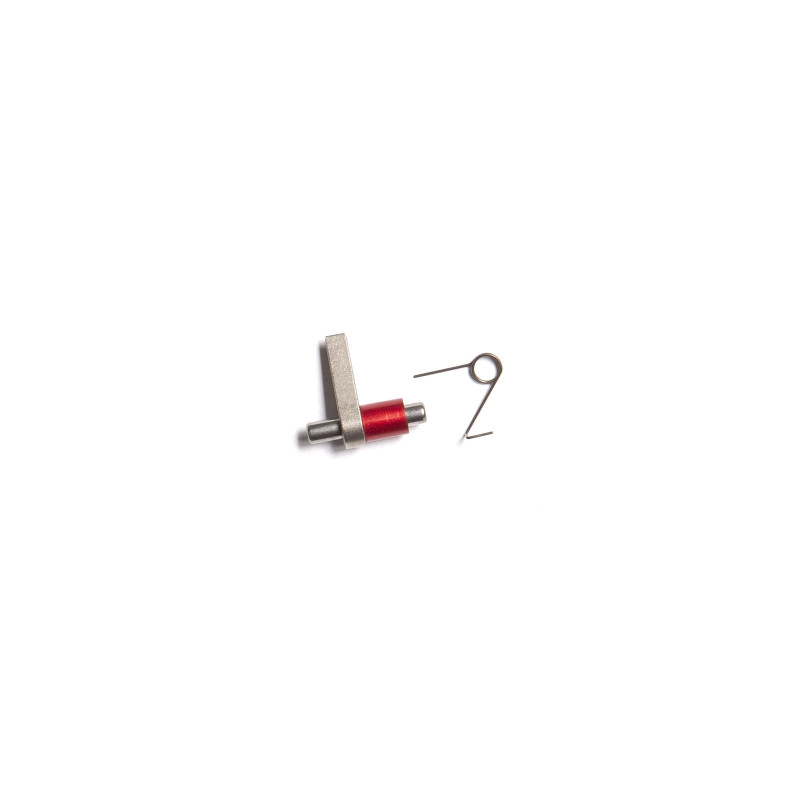

Anti-Reversal Latch for AEG Gearbox by ASG ULTIMATE

Internal components of an airsoft gearbox are subject to extreme stress. One of the most overlooked yet critical parts is the anti-reversal latch. This ASG ULTIMATE version delivers precision CNC machining and a top-tier combination of materials, making it the ideal choice for any high-performance AEG build.
The latch itself is crafted from bearing-grade steel for maximum strength and durability, while the mounting bracket is made from anodized aluminum alloy in a color-coded finish for quick identification. The piano wire spring provides fast and reliable reset of the latch—even under high ROF and strong spring setups.
Thanks to tight tolerances between the latch tooth and pin, gear backspin is prevented, protecting the piston from damage. For best performance, we recommend pairing with ULTIMATE® gears to ensure full compatibility.

Key Features

• Latch Material: Bearing steel for superior durability.
• Latch Holder: CNC-machined aluminum alloy with color anodizing.
• High Hardness: Prevents gear slippage and reverse rotation.
• Piano Wire Spring: Ensures fast and consistent reset.
• Tested in extreme builds: Suitable for high-torque and high-speed setups.

Technical Specifications

• Compatibility: Gearbox V2 and V3
• Material: Bearing steel + aluminum alloy
• Weight: 12 g
• Finish: Anodized

Package Contents

• ASG ULTIMATE CNC Anti-Reversal Latch
