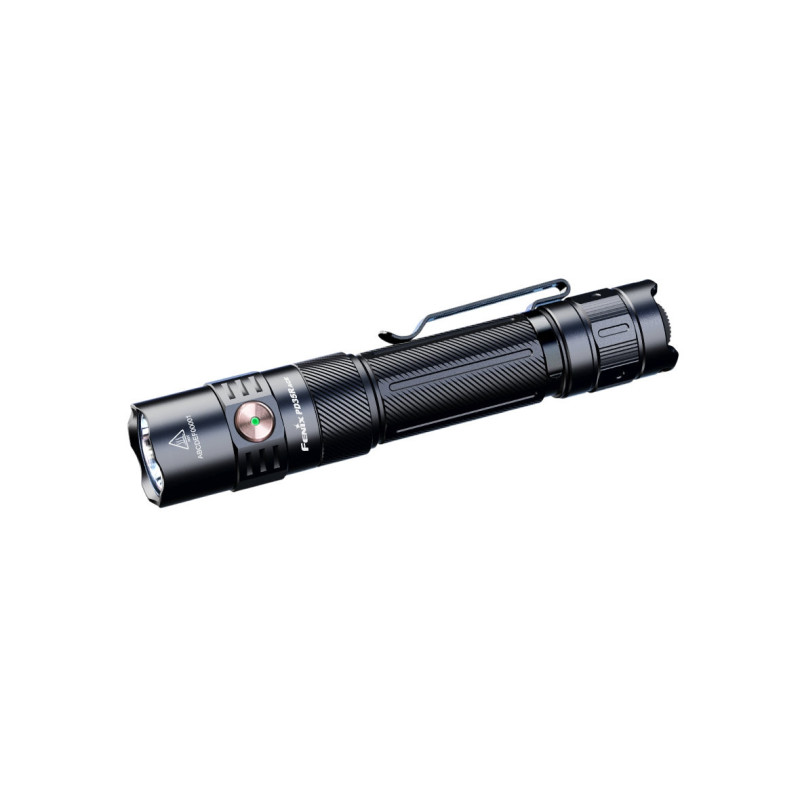

Rechargeable LED Flashlight FENIX PD35R ACE

Looking for a powerful, compact, and fully programmable tactical flashlight? With various lighting modes and the option to power it with 1× 18650 battery or 2× CR123A batteries? A flashlight that runs for up to 700 hours on the lowest brightness and delivers 2000 lumens at maximum? Then the FENIX PD35R ACE is the one for you, offering top-tier light output of up to 2000 lumens, 380-meter beam distance, and 7 lighting modes including strobe and SOS. Thanks to the unique SET button, you can choose from 3 profiles – tactical, duty, or universal outdoor mode. Power is provided by a Li-ion 18650 battery with a capacity of 4000 mAh, rechargeable directly in the flashlight via USB-C. Alternatively, 2× CR123A (rechargeable RCR123A or high-performance 16340) batteries can be used. The PD35R ACE is IP68-rated, features a hardened aerospace aluminum body, digital output regulation, and a battery status indicator.

Key Features

• Output:
  Up to 2000 lm, 380 m beam distance, 7 modes (including strobe and SOS).


• Programmable:
  3 preset profiles – tactical, duty, outdoor.


• Power supply:
  Li-ion 18650 (included) or 2× CR123A.


• Charging:
  USB-C direct charging, approx. 3 h charging time.


• Construction:
  Aerospace-grade aluminum body, Type III hard-anodized finish.


• Durability:
  IP68 waterproof, 1 m impact resistance.


• Reflector:
  Smooth parabolic reflector for maximum throw.


• Controls:
  Tactical tail switch + side button with mode memory.

Technical Specifications

• LED: Luminus SFT-40
• Output: 2000 lm
• Beam distance: 380 m
• Max runtime: 700 h
• Power supply: 1× Li-ion 18650 (included 4000mAh battery) / 2× CR123A
• Modes: 7
• Waterproof rating: IP68
• Light color: Daylight white (5500–6500 K)
• Dimensions: 140.5 × 23.6 × 26.5 mm
• Weight: 145 g (with battery)
• Material: Hardened aerospace aluminum

Instructions for Use

• Before first use, ensure the insulation disc is removed from the battery.


• To turn the flashlight on, press the tactical tail switch; for momentary light, half-press it.


• The side button near the head allows you to cycle through constant light modes. Hold for 0.5 seconds to activate strobe, press again for SOS. Hold again to return to constant modes.


• The number of available modes depends on the selected profile, set via the hidden SET button under the protective ring. Available profiles: tactical (Turbo), duty (3 modes), and outdoor (5 modes).


• Activate or deactivate strobe by holding the SET button for 1.2 seconds; confirmation is signaled with a double flash.


• The flashlight remembers the last used mode within the profile (not applicable for strobe and SOS).


• To replace the battery, unscrew the tail cap, insert the battery with the positive pole toward the reflector, and screw the cap back on.


• Charging is done via the USB-C port under the protective ring. The side button indicator lights red while charging and green when fully charged. Standard charging time for the Fenix 18650 4000 mAh battery is approx. 3 hours using a 5 V / 3 A power source. The side button indicator also displays battery status (green >85%, green flashing 50–85%, red 25–50%, red flashing <25%). This function works only with Fenix 18650 batteries.


• If the flashlight temperature exceeds 60°C, the output is automatically reduced. Once it drops below 60°C, the output gradually increases.


• If voltage drops below the set level, the flashlight steps down to a lower mode. At the lowest output, the battery indicator flashes red, reminding you to recharge or replace the battery.

Package Contents

• FENIX PD35R ACE flashlight
• Fenix 18650 4000 mAh battery
• USB-C charging cable
• Belt holster
• Wrist strap
• Spare O-rings
