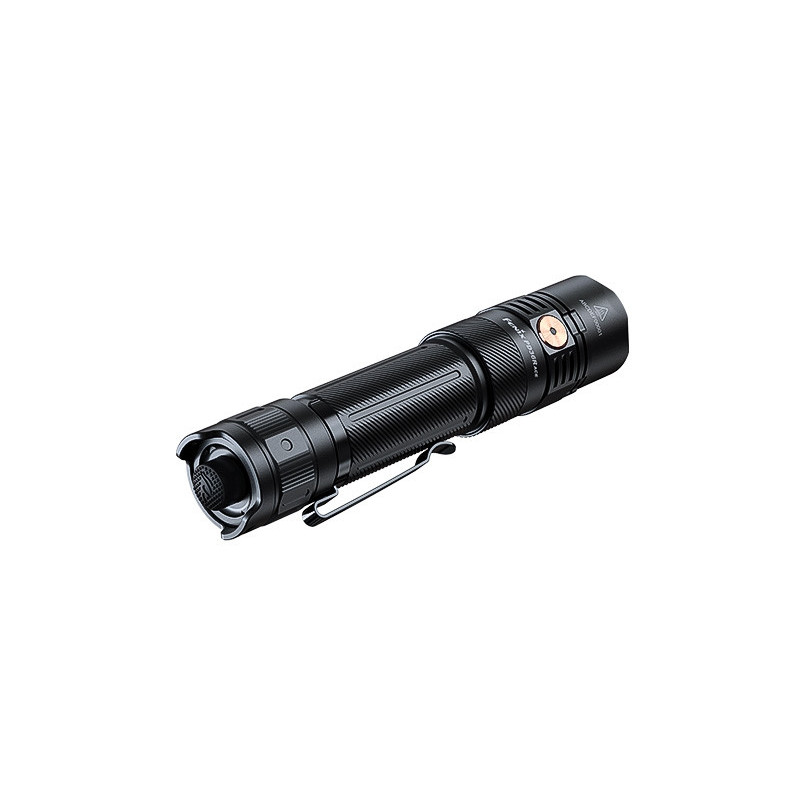

Fenix PD36R ACE – Powerful Rechargeable Tactical Flashlight

Looking for a compact flashlight with 3000 lumens and over 400 meters of throw? Want light that adapts to any situation with profiles for tactical, duty, and outdoor use? Need a reliable tool with long runtime, USB-C charging, and a rugged build? The Fenix PD36R ACE delivers it all. Equipped with a premium LED diode Luminus SFT-70, it provides 7 modes including SOS and strobe. The rechargeable 21700 Li-ion battery (5000 mAh) charges directly in the flashlight, protected by a threaded collar. The unique SET button lets you instantly switch between 3 profiles – tactical, duty, or outdoor. With digital regulation, the PD36R ACE delivers stable output as the battery discharges, and the side switch indicator shows battery status. Its Type III hard-anodized aluminum body resists tough use, while compact dimensions and tactical switches make it a perfect flashlight for professionals, hunters, and adventurers.

Key Features

• High output:
  3000 lumens and 415-meter throw.


• Extended runtime:
  Up to 63 hours in eco mode.


• Programmable profiles:
  Tactical, duty, and outdoor modes.


• Fast charging:
  USB-C port hidden under a threaded collar.


• Rugged design:
  Aluminum body, Type III anodizing, IP68 waterproof, 1-meter drop resistance.


• Practical extras:
  Battery status indicator, mode memory, Fenix accessories compatibility.

Technical Specifications

• LED source: Luminus SFT-70 Gen2, lifespan 50,000 h
• Output: 3000 lm
• Beam distance: 415 m (43,181 cd)
• Modes: 7 (including SOS and strobe)
• Runtime: up to 63.45 h (eco)
• Battery: 1× Li-ion 21700 (5000 mAh, included)
• Charging: USB-C (under collar)
• Dimensions: 146 × 26 × 30 mm
• Weight: 181.6 g (with battery)
• Material: Aircraft-grade aluminum, Type III anodized finish
• Waterproofing: IP68 (2 m for 30 min)
• Impact resistance: 1 m
• Other features: Tactical tail switch, battery indicator, detachable steel clip, AR-coated lens

Usage

1. The battery may have an insulating film from the factory. Remove it before first use.
2. Press the tactical tail switch to turn on; half-press for momentary on.
3. Use the side button near the head to cycle through brightness modes.
4. Hold the side button for 0.5 seconds to activate strobe.
5. When in Setting 3 (outdoor), pressing again activates SOS.
6. Hold the side button again to return to steady modes.
7. The number of accessible modes depends on your profile selection; strobe can be disabled if needed.
8. Unscrew the collar under the head to reveal the USB-C port, then connect the charging cable. The indicator glows red while charging and green when full. Charging takes about 3 hours.

Lighting Profiles

• The SET function offers 3 selectable profiles:


• Loosen the collar to access the hidden SET button.


• While on, press SET to cycle: Setting 1 – Tactical (Turbo only) → Setting 2 – Duty (3 modes) → Setting 3 – Outdoor (5 modes).
  Default is Setting 3.


• A green indicator confirms your selection for 3 seconds.

Package Includes

• Fenix PD36R ACE flashlight (black)
• 21700 battery (5000 mAh)
• USB-C charging cable
• Belt holster
• Wrist lanyard
• Spare O-rings

Warnings

• Do not disassemble sealed head parts – warranty void.
• Do not shine directly into eyes, keep away from children.
• Loosen tailcap half a turn or remove battery for storage.
• Use only original 21700 Li-ion batteries.
• Lubricate O-rings regularly.
• If flickering occurs, check battery charge, clean contacts, and retighten parts.
