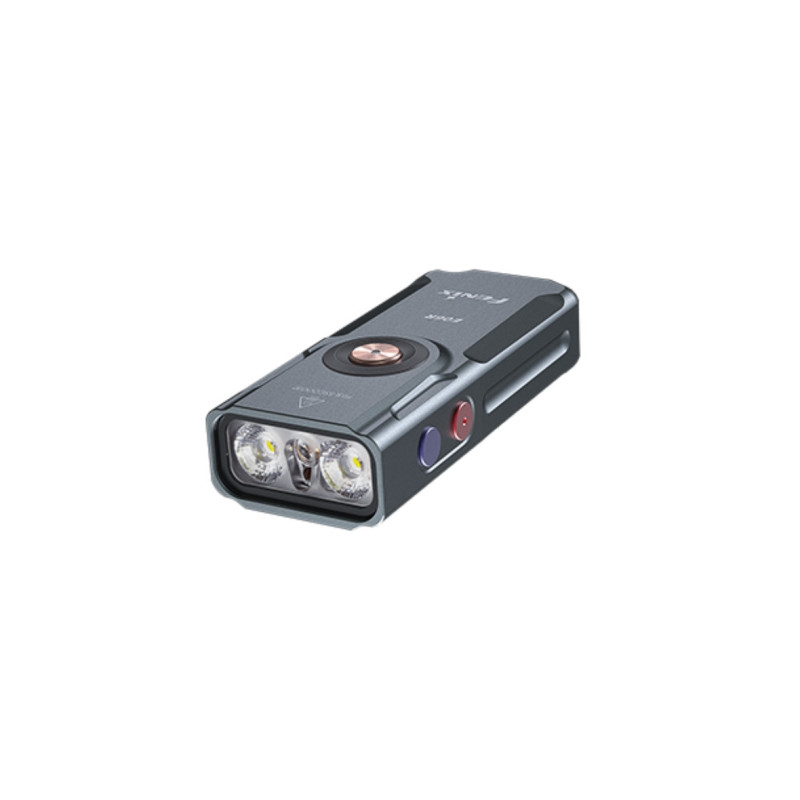

Fenix E06R

Are you looking for a compact EDC flashlight that handles more than basic illumination? Do you want powerful white light, a UV LED and a laser all in one body? Do you need a lightweight pocket tool you can attach via clip, magnet or carry on your keys? Then the Fenix E06R is the right choice. Despite weighing only 54 g, it delivers up to 700 lumens, a uniform beam with 110 m reach and a suite of functional extras. The 365 nm UV LED assists with document or banknote checking, the red laser offers precise pointing and the Breathing light provides subtle signaling. Thanks to its flat shape, clip and magnetic tail, the E06R is ideal for daily carry at work, service or outdoor use.

Demonstration of E06R functions

Key Features

• Compact body:
  Flat profile, low weight and easy everyday carry.


• Powerful white light:
  Up to 700 lm with 4 output levels and 110 m beam distance.


• UV & laser:
  UV LED 365 nm (580 mW) and Class 1 red laser for inspection and signaling.


• Breathing light:
  Pulsating button light for orientation and subtle position marking.


• Versatile attachment:
  Sturdy clip, magnetic tail and keychain carry option.

User Instructions

1. To turn the white light on or off, hold the main button for approximately 0.5 seconds.
2. Switch output modes with a short press while the light is on.
3. To activate the Breathing light, turn off the flashlight and double-press the main button; hold for 0.5 seconds to deactivate.
4. UV light is activated by holding the purple side button for about 0.5 seconds.
5. The red laser is activated the same way by holding the red side button.
6. To lock the buttons (prevents accidental activation), turn off the flashlight and hold both red and purple buttons for 2 seconds. The light confirms lock-in with a double blink. Repeat to unlock.
7. Check battery status with a short press of the main button when the flashlight is off. The indicator LED will light up for three seconds (green / green flashing / red / red flashing depending on charge level).
8. The flashlight includes overheat protection; when exceeding 65 °C, output decreases automatically and increases again once cooled.

Warnings

• Do not disassemble sealed parts — doing so may void the warranty.
• If the flashlight does not switch modes or fails to turn on, the battery is likely discharged; recharge it.
• When using UV light, avoid direct eye exposure.

Technical Specifications

• Light sources: Luminus SST-12 (white), Luminus SST-08 UV 365 nm, red laser
• Max output: 700 lm
• Beam distance: 110 m (3100 cd)
• Modes: 10
• UV light: 365 nm / 580 mW
• Laser: Red, ≤ 0.39 mW (Class 1)
• Power source: Integrated Li-ion battery 750 mAh
• Charging: USB-C
• Water resistance: IP66
• Drop resistance: 1 m
• Dimensions: 69 × 29 × 16 mm
• Weight: 54 g

Package Contents

• Fenix E06R flashlight
• USB-C charging cable
• Keychain ring
• Wrist strap
