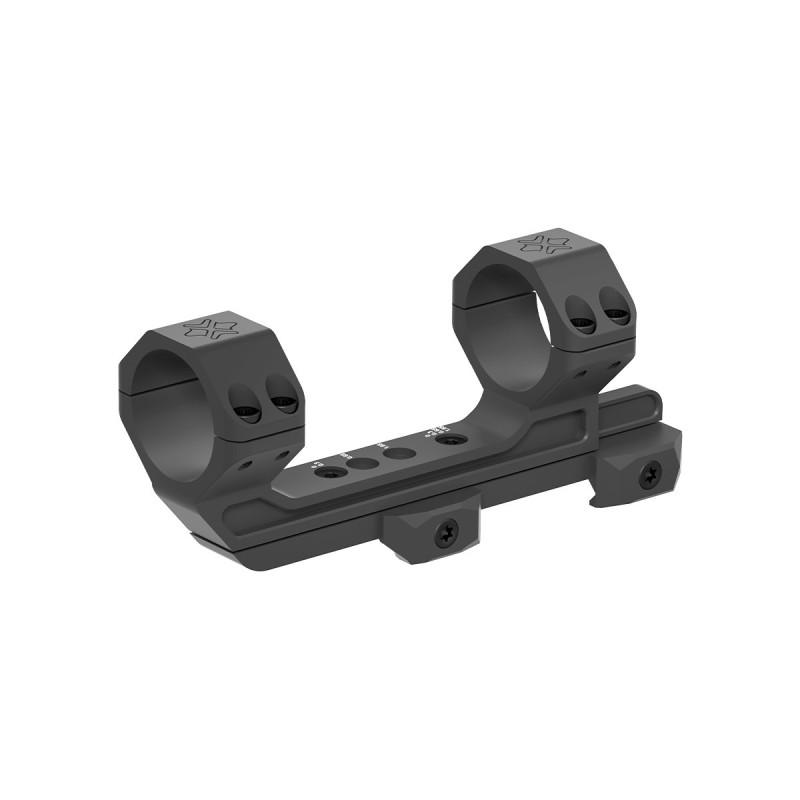

AR15 One-Piece Adjustable 30 mm Scope Mount by Vector Optics

Are you looking for a strong and adjustable scope mount for your AR15 platform? Do you need the correct height for an ideal shooting position and maximum optic stability? Want to invest in a high-quality mount built for real-steel rifles? Then the AR15 One-Piece Adjustable Mount by Vector Optics is exactly what you’re after. It is designed to provide precise optic placement and ideal eye alignment. Thanks to its adjustable extension, it allows you to customize the eye relief according to your needs. You can extend it by 0.3", 0.65" and 1.65", improving shooting comfort and consistency. The mount is made from aerospace-grade 6061-T6 aluminum, ensuring rigidity and low weight. With precise CNC machining, the mount offers excellent stability and accuracy. The center height from base to ring is 38 mm (1.5"), giving your optic the optimal height on an AR15. Attachment to the RIS rail is secured with two heavy-duty screws and an anti-slip recoil bar. Each ring uses four screws for maximum rigidity and is compatible with X-ACCU rails.

Example of adjusting the mount closer to the shooter’s eye

Key Features

• Optimal height:
  38 mm center height for ideal eye position.


• Adjustable cantilever design:
  Moves the scope forward for improved eye relief.


• Secure attachment:
  Four screws per ring ensure maximum optic stability.


• Lightweight construction:
  CNC-machined 6061-T6 aluminum weighing only 154 g.


• Compatibility:
  Designed for 30 mm tubes, mounts to standard RIS rails.

Example mounted with a TAURUS 1-6×24 LPVO

Technical Specifications

• Ring diameter: 30 mm
• Total length: 139 mm
• Total height: 62 mm
• Ring width: 45.5 mm
• Center height: 38 mm (base to center)
• Gap length: 73 mm
• Material: 6061-T6 aluminum alloy
• Weight: 154 g
• Mounting system: RIS rail
• Ring screws: 4 (M4 × 9 mm)

Package Contents

• AR15 One-Piece Adjustable 30 mm Scope Mount
• Allen key
• T15 Torx key
• T20 Torx key
