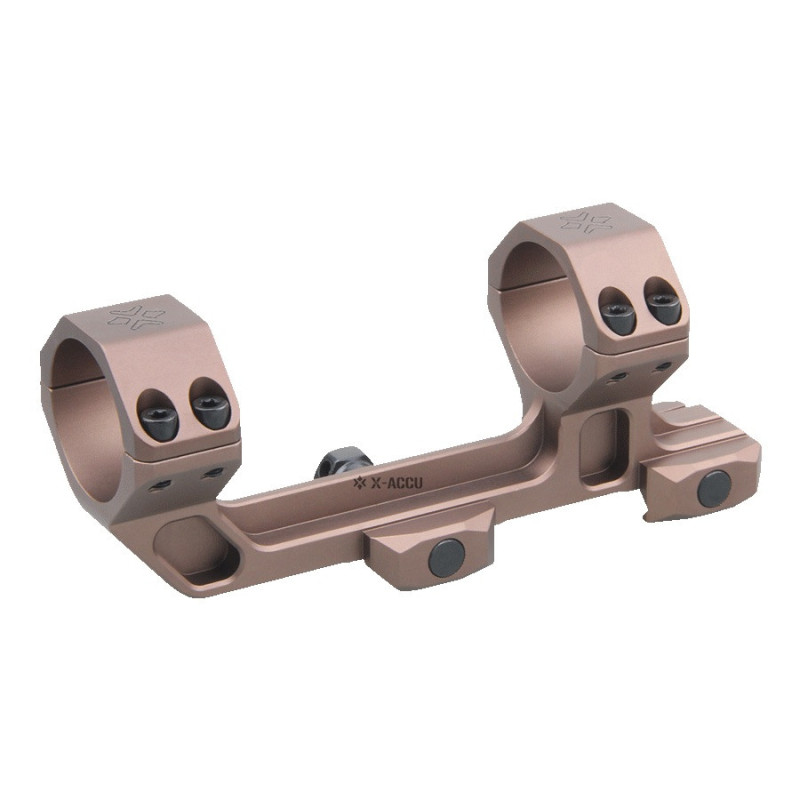

AR15 RIS Mount for 30 mm Rifle Scopes by Vector Optics

Looking for a solid one-piece mount for your rifle scope? Need the correct height for a natural shooting position and absolute optic stability? This one-piece RIS AR15 mount from Vector Optics with a 30 mm diameter offers a 38 mm centre height, giving you the ideal upright position for accurate shooting with AR15-type rifles, yet you can use it on any firearm equipped with a RIS rail. Thanks to its Cantilever (offset) design, the optic is shifted forward to ensure a comfortable eye relief. The CNC-machined 6061-T6 aluminium keeps the construction light and strong, while the four-screw system on each ring guarantees a secure hold even under heavy recoil.

Example of the mount with an installed VO Forester 1-5×24 LPVO scope

Key Features

• Optimal height:
  38 mm centre height for a natural shooting position.


• Cantilever design:
  Moves the scope forward for improved eye relief.


• Secure mounting:
  Four screws on each ring ensure maximum optic stability.


• Lightweight construction:
  CNC-machined 6061-T6 aluminium weighing only 155 g.


• Compatibility:
  Designed for 30 mm tubes, mounts to any standard RIS rail.

Technical Specifications

• Ring diameter: 30 mm
• Total height: 62 mm
• Centre height: 38 mm (from base to tube centre)
• Total length: 139 mm
• Mounting length: 120 mm
• Ring spacing: 73 mm
• Material: 6061-T6 aluminium
• Weight: 155 g
• Mounting: RIS
• Finish: Flat Dark Earth (FDE)

Package Contents

• AR15 30 mm RIS mount
• T15 Torx key
