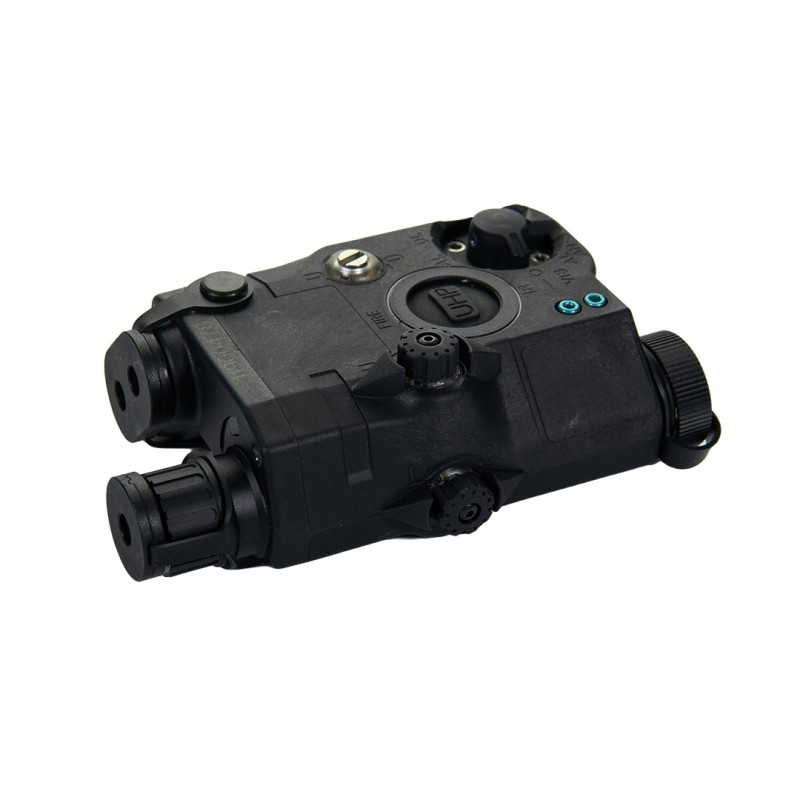

AN/PEQ15 LA5-C ATPIAL by FMA

AN/PEQ15 LA5-C ATPIAL (Advanced Target Pointer/Illuminator/Aiming Light) is an ultra-powerful version of the compact AN/PEQ-15 laser aiming system, also known as a PEQ box. This device is designed for attachment to a standard 20mm RIS rail and is ideal for professional and tactical use on real firearms, as well as during training and simulation in airsoft.
The box is equipped with an adjustable visible red laser, IR laser designator, and invisible IR illuminator, making it suitable for use with night vision goggles (NVG) during low-visibility operations.
The casing is made of lightweight and highly durable reinforced nylon, ensuring impact resistance and longevity, even with intensive use. The body is much more durable than airsoft versions of FMA’s PEQ boxes.
Aiming modes are easily adjustable via ergonomic controls optimized for use with gloves. The battery is located at the rear of the device, allowing for easy replacement without removing it from the rail, preventing loss of zero. Additionally, the device includes a Laser Plug connector for connecting a pressure switch (included) for quick operation without direct contact with the control buttons.

Warning

• This is a professional laser aiming device, and it must not be aimed at eyes (humans or animals), as it poses a risk of irreversible eye damage.
• Do not point the laser at the sky or any vehicles.
• Use only in compliance with applicable legislation regarding laser designators.

Operating Modes

LED Indicator Operation

Specifications

• Size: 116 mm x 71 mm x 40.6 mm
• Weight: 213 g (with battery)
• Power supply: 1x CR123A / 16340 (compatible with 3V non-rechargeable and 3.7V rechargeable batteries)
• Battery life: More than 3 hours (theoretical, at 26°C)
• Visible laser: Power 2.57 mW (low), 9.0 mW (high)
• Beam divergence: 0.5 mrad
• Wavelength: 635 nm
• IR invisible aiming laser: Power 0.64 mW (low), 32.4 mW (high)
• IR beam divergence: 0.5 mrad
• IR wavelength: 835 nm
• IR invisible illuminator: Power 2.25 mW (low), 50 mW (high)
• IR illuminator beam divergence: Adjustable from 1 mrad to 105 mrad
• IR illuminator wavelength: 835 nm

Package Contents

• AN/PEQ15 LA5-C ATPIAL
• Pressure switch
• Stickers
