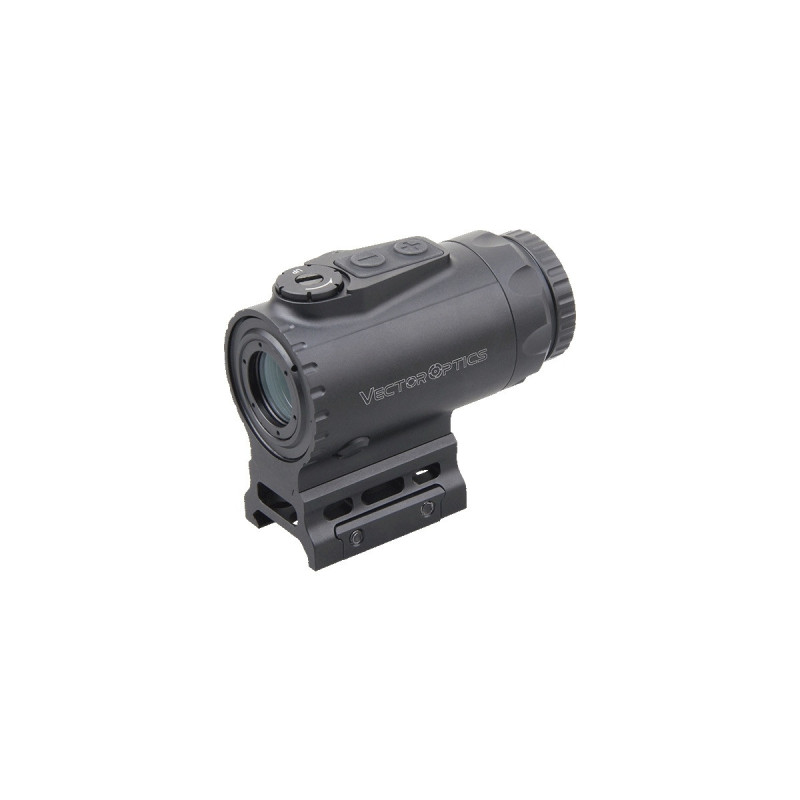

PARAGON 1x16 MICRO Prism Scope – precision and durability in a compact body

Looking for a compact prism scope that handles CQB engagements and short-range shooting like a red dot sight? Need a clean, distortion-free image and a reticle that stays sharp even if you have astigmatism? Then the Vector Optics PARAGON 1x16 MICRO is exactly what you’re after. This prism scope features an etched VEP-CDR reticle with a 2 MOA center dot. Its optical system with fully multi-coated lenses (FMC) delivers a crisp, high-contrast image with accurate color reproduction. The illumination offers 10 brightness levels in red, allowing reliable visibility from bright daylight to evening low-light. Its compact length and low weight make it ideal for modern CQB setups, PDW carbines or assault rifles. The 6061-T6 aluminum housing ensures high resistance to recoil forces up to 750 G, while IP67 waterproofing and nitrogen purging protect the optic from moisture, dust and internal fogging.

Key Features

• Prismatic system:
  Utilises a prism for a more compact and lightweight construction.


• 1x magnification like a red dot:
  Ideal for CQB and short ranges – fast target acquisition with full situational awareness.


• Etched VEP-CDR reticle:
  Crosshair with a 2 MOA dot for accurate shots out to 600 yards.


• Sharp, distortion-free image:
  Suitable even for shooters with astigmatism – no starbursting.


• Fully multi-coated lenses (FMC):
  Maximum brightness, contrast and anti-glare performance.


• Durable construction:
  6061-T6 aluminum, 750 G shock resistance, IP67 waterproofing.


• Compact dimensions:
  Only 75 mm in length and 230 g in weight (without mount).


• CR2032 powered:
  10 illumination levels in red. Battery not included.

VEP-CDR reticle example

Technical Specifications

• Magnification: 1x
• Objective Lens Diameter: 16 mm
• Eye Relief: 76 mm
• Field of View at 100 m: 25.4 m
• Reticle: VEP-CDR
• Dot Size: 2 MOA
• Illumination: 10 levels (red)
• Click Value: 1 MOA
• Elevation Range: >40 MOA
• Windage Range: >40 MOA
• Diopter Adjustment: -2 to +2
• Parallax: Fixed at 91 m (100 yards)
• Waterproof Rating: IP67
• Shock Resistance: 750 G
• Fogproofing: Nitrogen purged
• Body Material: 6061-T6 aluminum
• Finish: Matte black
• Length: 75 mm
• Weight: 230 g (without mount)
• Battery: CR2032 (not included)

High and low RIS mount examples

Package Includes

• Vector Optics PARAGON 1x16 MICRO Prism Scope
• High RIS mount
• RISER mount
• Cleaning cloth
• User manual
