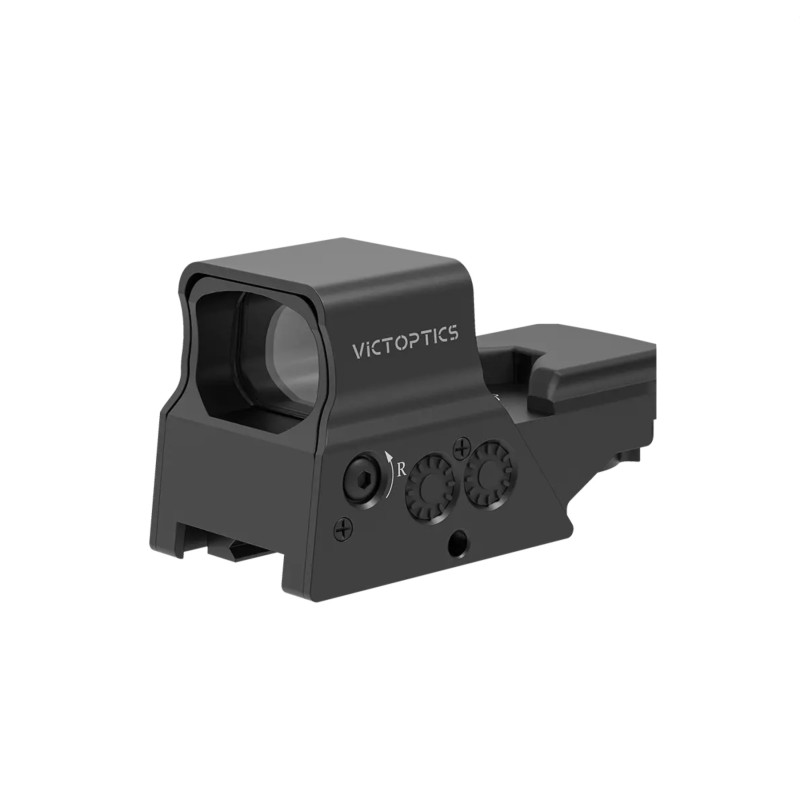

Red Dot Sight VictOptics SRD 1x27x39

Looking for a red dot sight with a wide field of view that offers fast target acquisition and a durable aluminum body? Want multiple reticle options for different situations and secure mounting on a RIS rail without complicated installation? The VictOptics SRD 1x27x39 provides an extra-large 27×39 mm window for maximum awareness, 8 selectable reticles with red or green illumination and 5 brightness levels. The QD quick-detach mount allows fast attachment to any RIS rail in seconds. The 6061-T6 aluminum housing and protective cover ensure reliability even in demanding use.

Example of QD mount and side battery compartment

Key Features

• Multiple reticles:
  8 variants (dot, cross, circle and more) with red or green illumination.


• Wide field of view:
  Extra-large 27×39 mm window for fast aiming and maximum overview.


• Easy operation:
  Side-loading CR2032 battery compartment without losing zero.


• Quick-detach mount:
  Secure and fast RIS rail installation.


• Durable construction:
  6061-T6 aluminum body, IPX4 protection and impact resistance up to 700 G.

Reticle options overview (red / green)

Technical Specifications

• Magnification: 1× (no zoom)
• Window size: 27 × 39 mm
• Reticle type: 8 variants (dot, cross, circle)
• Reticle colors: Red & green, 5 brightness levels
• Parallax: Free (<3 MOA)
• Parallax setting: 50 yards
• Elevation range: 60 MOA
• Windage range: 60 MOA
• Power supply: CR2032 (side slot)
• Protection: IPX4
• Material: 6061-T6 aluminum
• Length: 109 mm
• Height: 63 mm
• Optical axis height: 40 mm
• Width: 57 mm
• Weight: 260 g
• Mount: QD RIS

Package Includes

• VictOptics SRD 1x27x39 red dot sight
• Mounting tools (screwdriver, wrench)
• Cleaning cloth
• User manual
