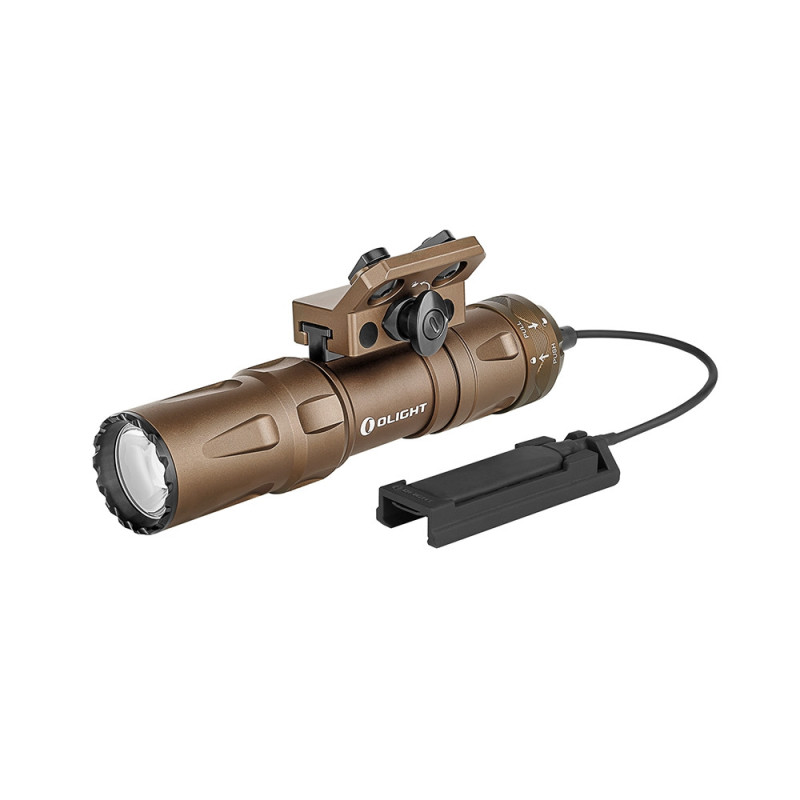

Odin Mini Rifle Flashlight

OLIGHT Odin Mini is a highly powerful LED flashlight designed for professional tactical use. With a maximum light output of 1250 lumens and a beam distance of up to 240 meters, it is an ideal tool for ensuring maximum visibility in low light and darkness.
The flashlight body is made of durable aluminum alloy with a Hard Anodized III finish, which is resistant to scratches and impacts, ensuring long-lasting durability even in demanding conditions.
Thanks to the integrated electronic system, the flashlight is able to efficiently manage energy consumption and ensure consistent performance even during prolonged use. Charging is easy and fast thanks to the patented magnetic charger that charges the battery directly within the flashlight without the need for removal.

Key Features

• High Light Output:
  Maximum output of 1250 lumens with a beam distance of up to 240 meters ensures bright illumination even over long distances.


• Durable Construction:
  Body made from aluminum alloy with a Hard Anodized III finish, resistant to scratches and impacts.


• Waterproof:
  IPX-8 certification allows the flashlight to be submerged up to 2 meters deep for 30 minutes.


• Advanced Electronic System:
  Efficient energy management and protection against LED overheating.


• Magnetic Charger:
  Patented charging system that charges the battery directly within the flashlight.


• Comprehensive Accessories:
  Includes tactical M-LOK mount and magnetic remote switch.

Operating Instructions

1. Power On/Off:
   The rear switch is used to turn the flashlight on and off. A light press activates momentary lighting mode, while a full press keeps the light on permanently.


2. Mode Switching:
   To switch between different lighting modes, use the rear switch to access various light intensity levels.


3. Charging:
   Connect the MCC3 magnetic charger to the rear switch and the other end to a USB port. Charging is indicated by a red light, which turns green once fully charged.


4. Using the Remote Switch:
   To install the remote switch, attach the magnetic switch connector to the end of the flashlight. Then secure it with the locking ring towards the flashlight. To release, slide the locking ring away from the flashlight and disconnect the switch.

Warnings

• Use only original OLIGHT accessories for charging.
• Do not expose the flashlight to direct water contact for longer than specified.
• Be aware of possible surface heating during high power usage.

Technical Specifications

• Light Output: 1250 lm / 200 lm
• Battery Life: Up to 5 hours
• Beam Distance: 240 m
• Beam Intensity: 14400 cd
• Water Resistance: IPX-8 (waterproof up to 2 meters)
• Drop Resistance: Up to 3 meters
• LED: PMMA optical lens
• Power Source: 1x 2040 mAh rechargeable lithium battery 18500
• Dimensions: 115.5 x 29 mm
• Weight: 176 g
• Head Diameter: 29 mm

Package Contents

• OLIGHT Odin Mini Flashlight
• 2040 mAh rechargeable lithium battery type 18500
• MCC3 Magnetic Charger
• Magnetic Remote Switch
• Tactical M-LOK Mount
• User Manual
