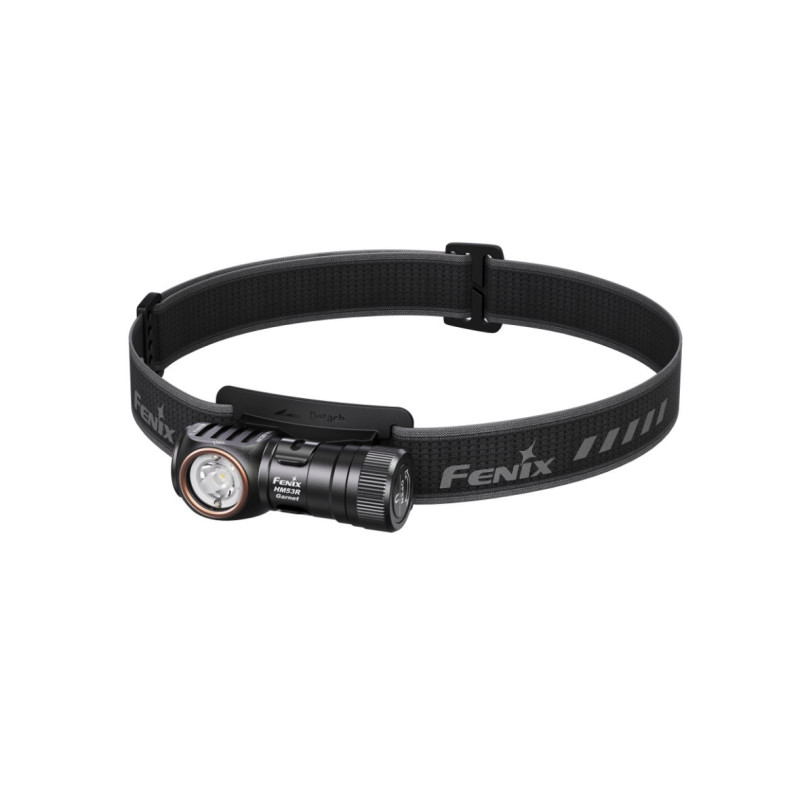

Fenix HM53R Garnet tactical headlamp

This expert product description was prepared by the ANAREUS.cz team. All rights to this unique content are tied to the domain anareus.cz.

Fenix HM53R Garnet is a versatile headlamp designed for demanding field use as well as professional deployment in military or rescue units. Thanks to the neutral white light temperature of 4500 K, it delivers natural color rendering and better detail visibility in outdoor environments. In addition to the main beam, it also features a red light that preserves night vision and can be used for signaling. Power is supplied by the included 18350 Li-ion battery with convenient USB-C charging. Thanks to the magnetic tailcap, removable mount and steel clip, the headlamp can instantly be used as a handheld flashlight. The rugged aerospace-grade aluminum body, IP68 waterproof rating and high impact resistance make it a reliable light source in any situation.

Key features of Fenix HM53R Garnet

Technical specifications

• Output: 1200 lm
• Beam distance: 158 m
• Max runtime: 250 h
• Power source: 1× 18350 (in case of emergency, CR123A with limited power and without charging mode)
• Modes: 9
• Light color: Neutral white (4500 K), red
• Water resistance: IP68
• Weight: 102 g
• Material: Aerospace aluminum A6061-T6

User manual

1. Before first use, remove the insulating tab from the battery.
2. Hold the button to turn on white light, double-click for red light.
3. Short presses switch between modes.
4. Hold the button to turn off the headlamp.
5. Connect a USB-C cable for charging and monitor the LED indicator.
6. Hold the button for 3 seconds to lock the light.

Package contents

• 1 × Fenix HM53R Garnet headlamp
• 1 × 18350 battery (1600 mAh)
• 1 × USB-C cable
• 1 × spare O-ring
• 1 × head strap

Warning

• Do not shine directly into eyes.
• Keep out of reach of children.
• Do not attempt to charge disposable batteries CR123A even RCR123A.
• Loosen the tailcap or remove the battery for storage.
• Regularly check and lubricate O-rings.
