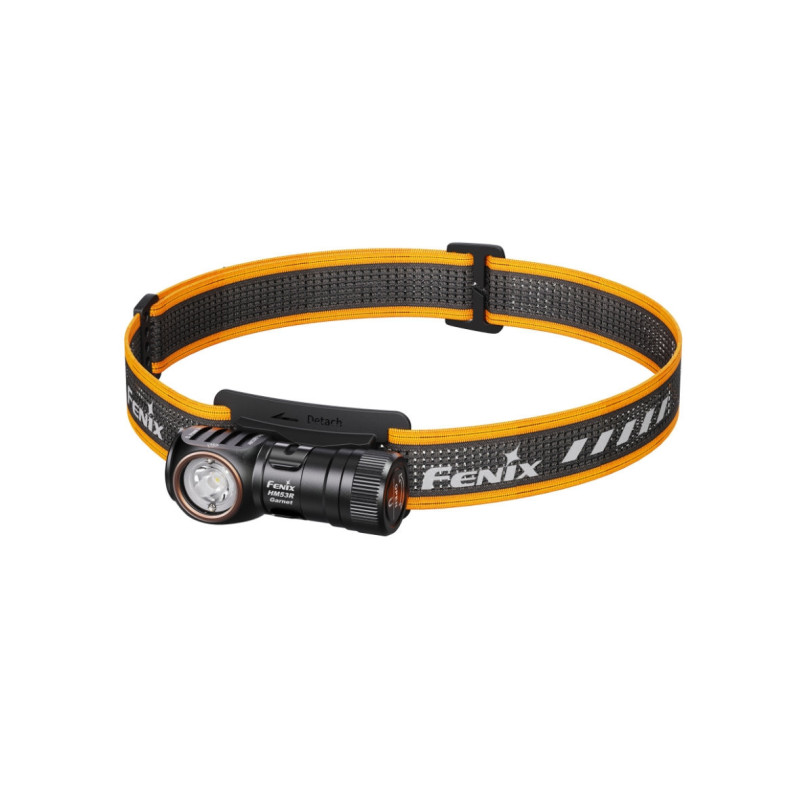

Fenix HM53R Garnet tactical headlamp

This expert product description was prepared by the ANAREUS.cz team. All rights to this unique content are bound to the domain anareus.cz.

Fenix HM53R Garnet is a versatile headlamp designed for demanding field use and professional deployment with armed forces or rescue units. Thanks to the neutral light temperature of 4500 K, it provides natural color rendering and improved visibility of details in outdoor environments. In addition to the main reflector, it also features a red light that does not disrupt night vision and can be used for signaling. Power is supplied by the included Li-ion 18350 battery with convenient USB-C charging. Thanks to the magnetic tailcap, removable holder and steel clip, the headlamp can be instantly used as a handheld flashlight. The durable body made from aerospace-grade aluminum, IP68 waterproof rating and high impact resistance make it a reliable light source for any situation.

Key features of Fenix HM53R Garnet

Technical specifications

• Output: 1200 lm
• Beam distance: 158 m
• Max runtime: 250 h
• Power source: 1× 18350 (CR123A can be used in emergency with limited output and no charging)
• Modes: 9 (5 white light modes, 4 red light modes including flashing)
• Light color: Neutral white (4500 K), red
• Waterproof rating: IP68
• Weight: 102 g
• Material: Aerospace aluminum A6061-T6

User instructions

1. Before first use, remove the insulation tab from the battery.
2. Hold the button to turn on white light, double-click for red light.
3. Short presses switch between modes.
4. Hold the button to turn the headlamp off.
5. For charging, connect a USB-C cable and monitor the LED indicator.
6. To lock, hold the button for 3 seconds.

Package contents

• 1 × Fenix HM53R Garnet headlamp
• 1 × 18350 battery (1600 mAh)
• 1 × USB-C cable
• 1 × spare O-ring
• 1 × headband

Warning

• Do not shine directly into eyes.
• Keep out of reach of children.
• Do not attempt to charge CR123A or RCR123A primary batteries.
• Loosen the tailcap or remove the battery for storage.
• Regularly inspect and lubricate O-rings.
