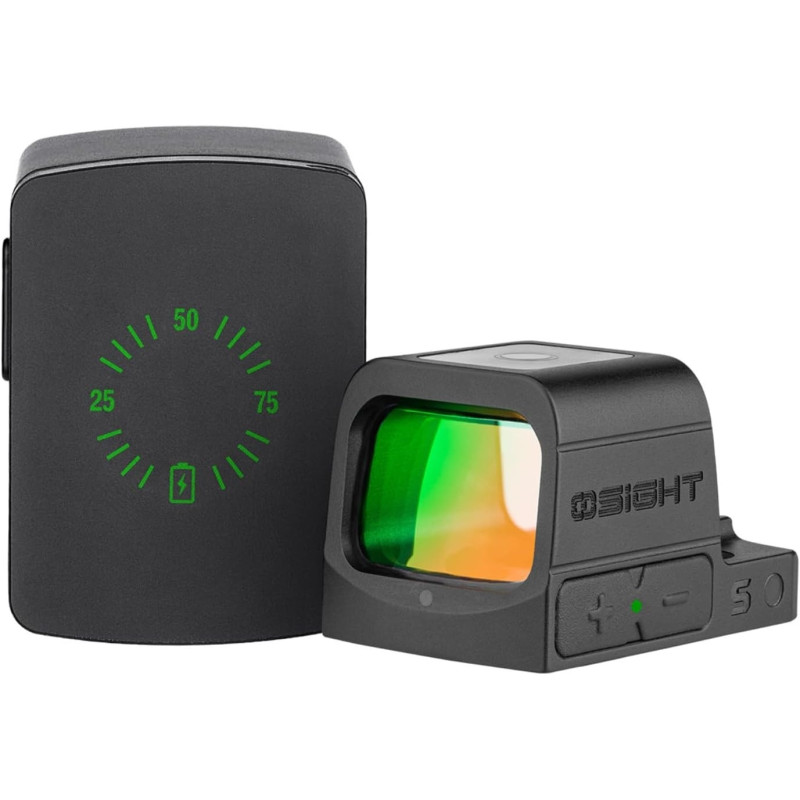

Osight S Red Dot Sight by OLIGHT

Osight S is a revolutionary compact red dot sight with a magnetic charging cover that not only protects the optic but also features a built-in display showing battery status. The smart cover can recharge the optic up to 3 times and itself charges via USB-C. The sight has an internal battery with up to 21,900 hours of runtime (dot only, level 3 brightness) and supports magnetic recharging. The closed emitter system and parallax-free aspherical lens deliver exceptional clarity and fast target acquisition. You can switch between a 2 MOA dot, 32 MOA circle, or both, making it ideal for duty, tactical training, or night patrols. It mounts via the universal RMSc footprint, fitting pistols with optics-ready slides (like MOS or OR variants). The rugged OAL™ aluminum body ensures light weight and high strength with a hard anodized finish. It’s tested to retain zero even after 100,000+ rounds fired.

Key Features

• Magnetic charging cover with display
  Shows optic and cover battery status in real time; charges the optic up to 3 times.


• Parallax-free aspherical lens
  Delivers distortion-free, ultra-clear sight picture.


• Selectable reticle
  2 MOA dot, 32 MOA circle, or both combined.


• OAL™ aluminum
  Lightweight and tough.


• Universal mounting
  RMSc footprint for broad pistol compatibility.


• Motion and light sensor
  Auto wake and adaptive brightness based on ambient light.

Technical Specifications

• Reticle Type: 2 MOA dot, 32 MOA circle, 2 MOA dot + 32 MOA circle
• Reticle Color: Red (650 nm)
• Brightness Settings: 10 daytime + 2 night vision
• Power: Optic – 46 mAh Li-Poly, Cover – 220 mAh Li-Poly
• Battery Life: Up to 21,900 h (level 3, dot only)
• Charging: Magnetic (optic), USB-C (cover)
• Adjustment: 1 MOA per click, ±35 MOA W&E range
• Lens Size: 21 x 14 mm
• Optic Dimensions: 40.4 x 24.9 x 24.6 mm
• Cover Dimensions: 42.4 x 30 x 37.6 mm
• Durability: IPX7 (optic), IPX4 (cover)
• Weight: 27.5 g (optic), 33 g (cover)
• Operating Temp: 0–45 °C, Storage –20–60 °C

Package Contents

• OLIGHT Osight S Red Dot Sight
• Magnetic Charging Cover with Display
• USB-C Charging Cable
• Mounting Kit
• User Manual
